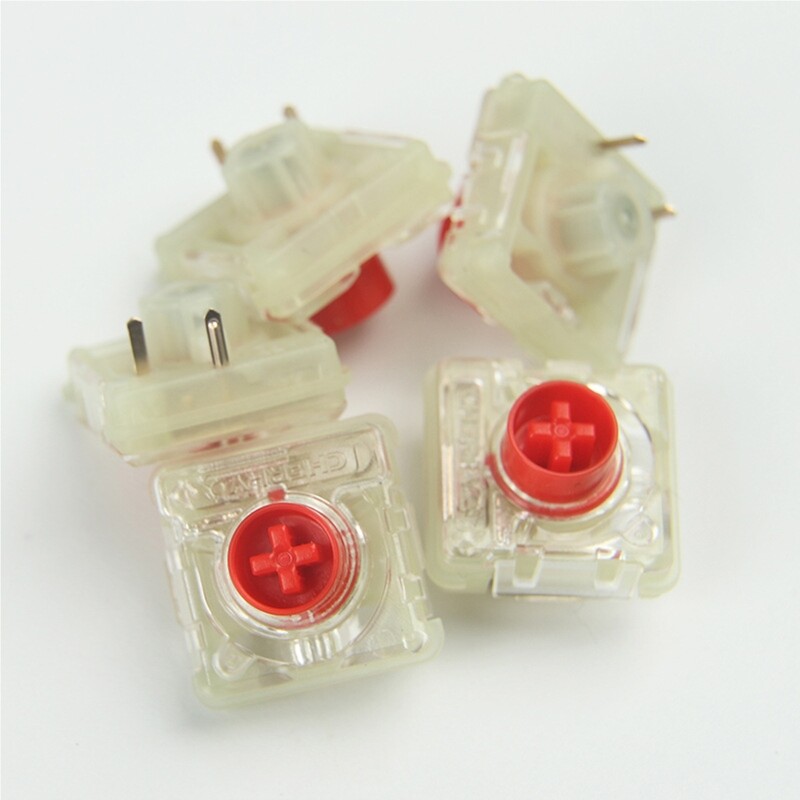

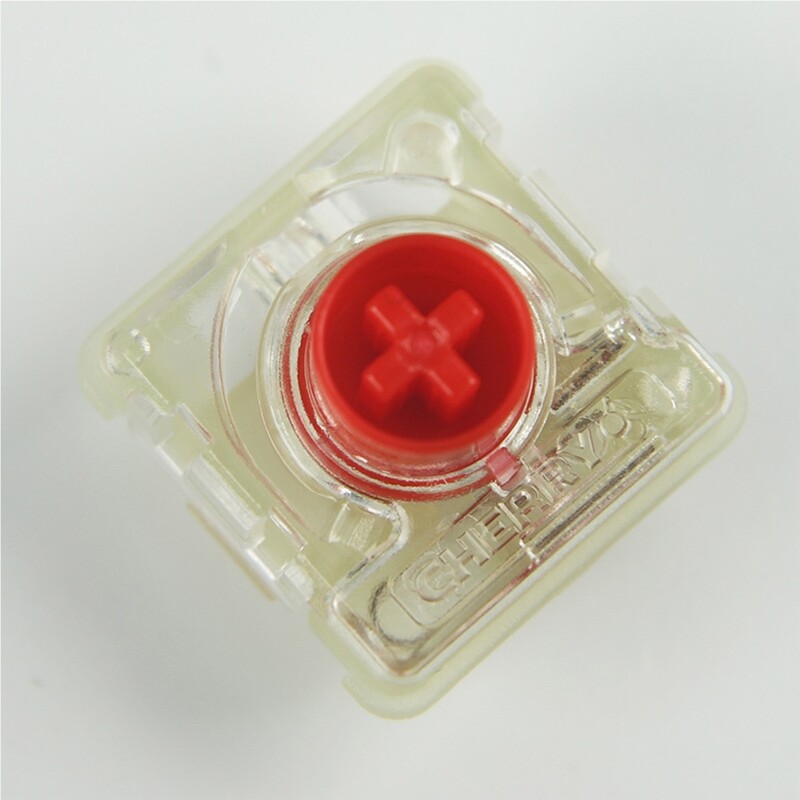

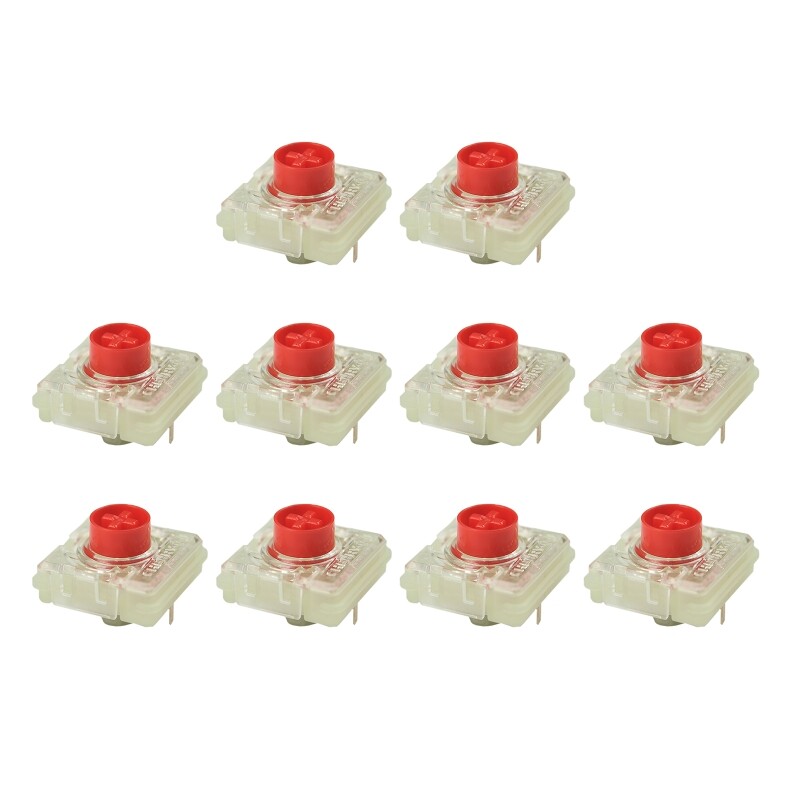

10PCS Cherry MX Red Low Profile Mechanical Keyboard Switches
$ 3.3
Description
Features: brand new and high quality Cherry-MX Low RGB Red Without pressure point, linear light actuation switching function with a defined force of approx. 45 cN without contact feedback Designed for use with SMD LEDs (RGB or single colour) More consistent lighting throughout the keycap due to optimized design Option to use all 16.8 million RGB colours in high luminosity (scope of supply does not include LED) SMD LEDs directly mounted on the circuit board for cost-efficient, fully automated production High-precision mechanical with very low operating point tolerance World exclusive Cherry Gold Crosspoint technology Short bounce for time for high switching frequency (such as for fast typing) Self-cleaning contacts resistant to dust and dirt Over 50 million keystrokes with no loss of quality Specifications: Technical Data for class: IP40 Operation characteristics: Low linear Switching 12V for DC Dielectric strength: 500V / 50Hz Durability: > 50 million actuations Contact configuration: Single-pole contact Actuator travel: 3.2 ± 0.25 mm Pretravel: 1.2 ± 0.3 mm Initial force: 40 cN min. Actuation force: 45 ± 15 cN Bounce time: typically ms Minimum spacing: 16 mm Size:approx 2x2x1.8cm/0.79x0.79x0.71in Lighting: SMD LED, mounted directly on the circuit board Insulation materials: Thermoplastics Spring: Stainless steel Contacts: High-quality gold alloy Storage Temperature: -40°C to 70°C Operating Temperature: 5°C to 40°C Humidity: Storage: average <50% Package Includes: 10 PCS x for Switches note: Pls pay attention: Cherry Low only, not including other things Due to manual measurement, please allow error of 0-1cm. Please make sure you don’for t mind before bidding. Due to the difference of different monitors, the picture may not reflect the actual color of the item. Thanks!
