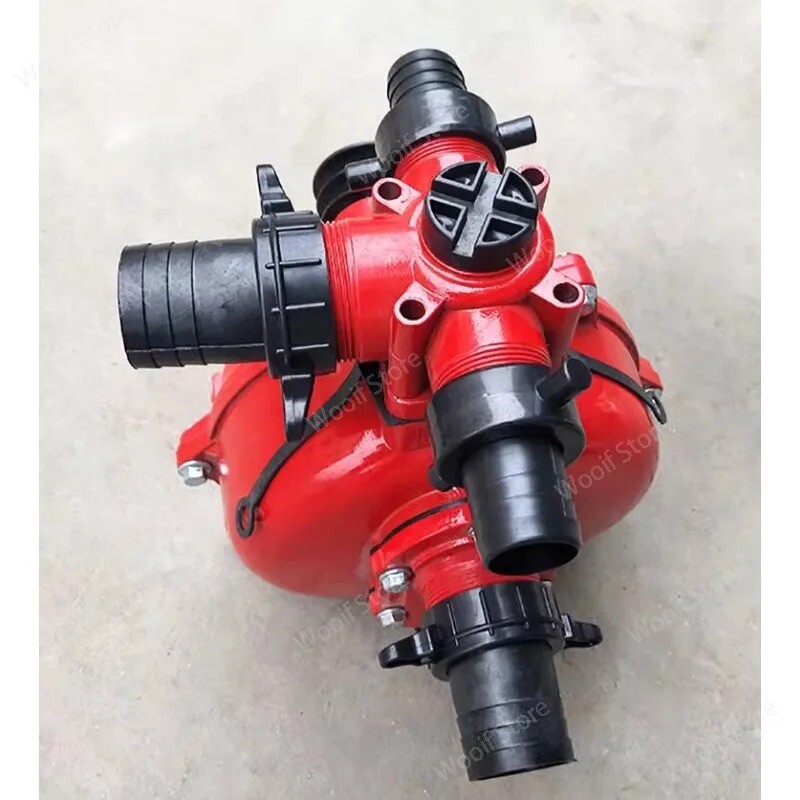

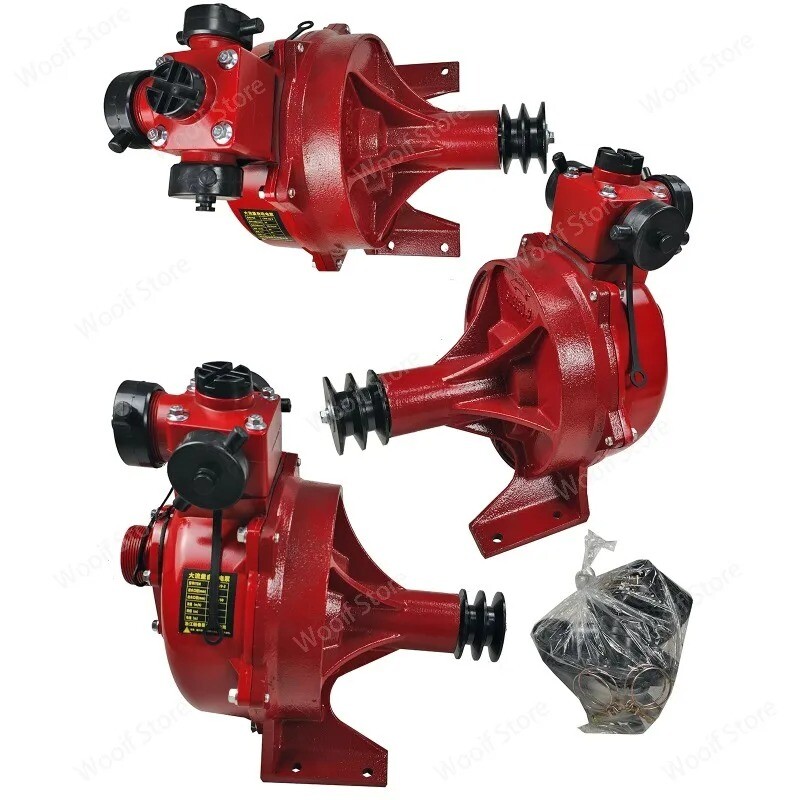

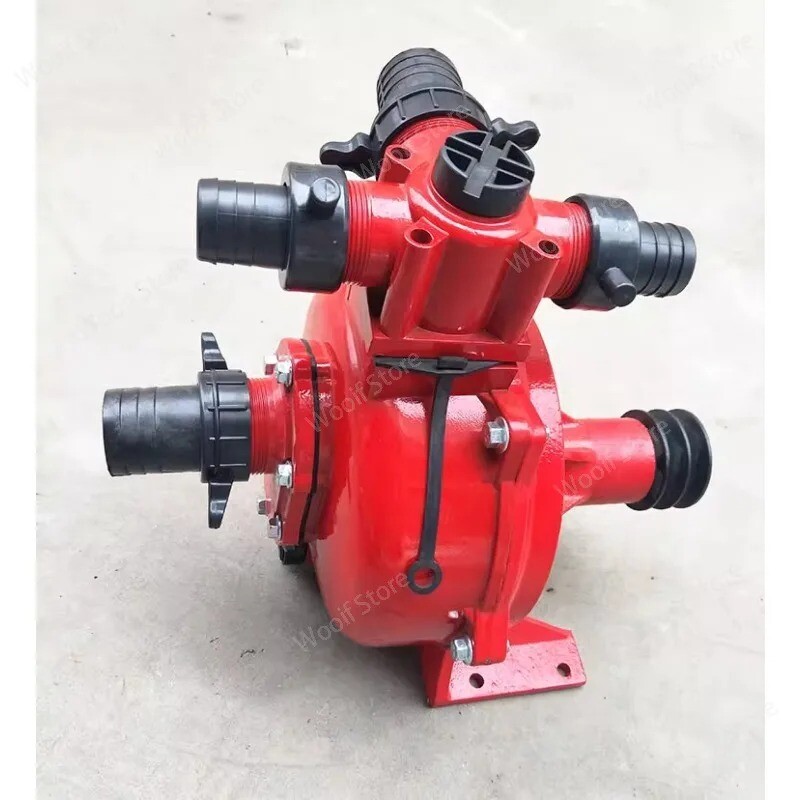

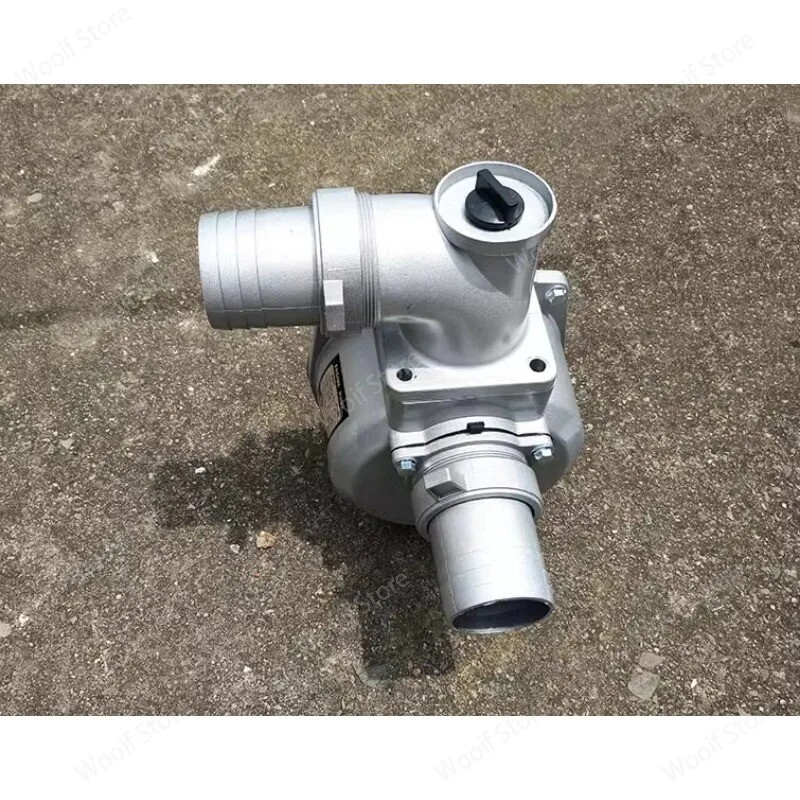

Aluminum 50mm Self Priming Water Pump Head for Drag Watering
$ 67.85
Description
1 inch water pump/drag pump parameters Water pump model: SU25 Water inlet/outlet thickness: 3mm Water inlet/outlet diameter: 25/25mm (1 inch) Water pump lift 21-25(m) Suction lift height 6(m) Pulley size: outer diameter 57mm*width 32mm*inner hole 19mm (Type A) Speed: 3600r.p.m Maximum flow rate of pump: Theoretically about 10 cubic meters/hour Supported power: 1.5-3HP, the pulley rotates clockwise for normal working direction (counterclockwise when facing the pulley) Packing size Packing size: length 30*width 18*height 19cm Outline size: about 33*27*18cm Product weight: about 7kg 2-inch water pump/drag pump parametersWater pump model: WP20X/SU50 Water inlet/outlet thickness: 3mm Water inlet/outlet diameter: 50/50mm (2 inches) Ordinary model lift 25-30m suction height 6m High-pressure version, single impeller lift is 60m, double impeller lift is 90-100m Pulley size: outer diameter 77mm* width 42mm* inner hole 18mm (type B) With the power pulley, clockwise rotation is the normal working direction (counterclockwise when facing the pulley) Speed: 3600r.p.m Maximum flow rate of pump: Theoretically about 25 cubic meters/hour Supported power: 5.5-7.5HP, the pulley rotates clockwise for normal working direction (counterclockwise when facing the pulley) Packing size: length 37*width 22.5*height 23.5cm Product weight: about 10kg 3-inch water pump/drag pump parametersWater pump model: SU80 Water inlet/outlet thickness: 3mm Water inlet/outlet diameter: 76/76mm (3 inches) Water pump lift 25-30(m) Suction lift height 6(m) Pulley size: outer diameter 77mm* width 42mm* inner hole 24mm (type B) Speed: 3600r.p.m Maximum pump flow rate: Theoretically about 50 cubic meters/hour Supporting power: 5.5-7.5HP, the pulley rotates clockwise for normal working direction (counterclockwise when facing the pulley) Packing size: length 39*width 25.5*height 26cm Product weight: about 12.5kg Small 4-inch water pump/trailer pump parametersWater pump model: SU100S Water inlet/outlet thickness: 3-4mm Water inlet/outlet diameter: 100/100mm (4 inches) Water pump lift 20(m) Suction lift height 6(m) The height from the center of the shaft to the ground is about 11cm Pulley size: outer diameter 75mm*inner hole 24mm*width 41mm (Type B) Speed: 3600r.p.m Maximum flow rate of pump: Theoretically about 70-80 cubic meters/hour Supported power: 7.5-15HP, the pulley rotates clockwise for normal working direction (counterclockwise when facing the pulley) Packing size: length 44*width 27*height 28cm Outline size: length 50*width 35*height 42cm Product weight: about 13.2 kg Large 4-inch water pump/trailer pump parametersWater pump model: SU100 Water inlet/outlet thickness: 3mm Water inlet/outlet diameter: 100/100mm (4 inches) Water pump lift 25(m) Suction lift height 6(m) The height from the center of the shaft to the ground is about 14cm Pulley size: outer diameter 89.3mm*width 42mm*inner hole 28mm (type B) Speed: 3600r.p.m Maximum flow rate of pump: Theoretically about 80-90 cubic meters/hour Supported power: 9-15HP, the pulley rotates clockwise for normal working direction (counterclockwise when facing the pulley) Packing size: length 48*width 29.5*height 33.5cm Product weight: about 21.5kg Note: The machine is shipped with no water pipe as standard. You need to purchase your own water pipe and power (gasoline engine or diesel engine or motor). You also need to prepare your own base mounting screws. It is recommended that the water suction pipe be equipped with a steel wire water suction pipe, and a hose for the water outlet pipe is okay. Please open the top cover of the pump body and fill it with water before use. No need to add engine oil. The following is a picture of a 2-inch tow pump: The following are pictures of the 3-inch tow pump: The following is a picture of a 4-inch tow pump: The following is: The following is:
This water pump is a beast! Super sturdy aluminum build, moves water fast, and handles high lifts with ease. Perfect for irrigation or transferring water—super reliable and easy to set up. Worth every penny!
