Charging Station 32A Scheduled Charge Wall Mount Electric Vehicle Charger Type 2
$ 268.02
Description

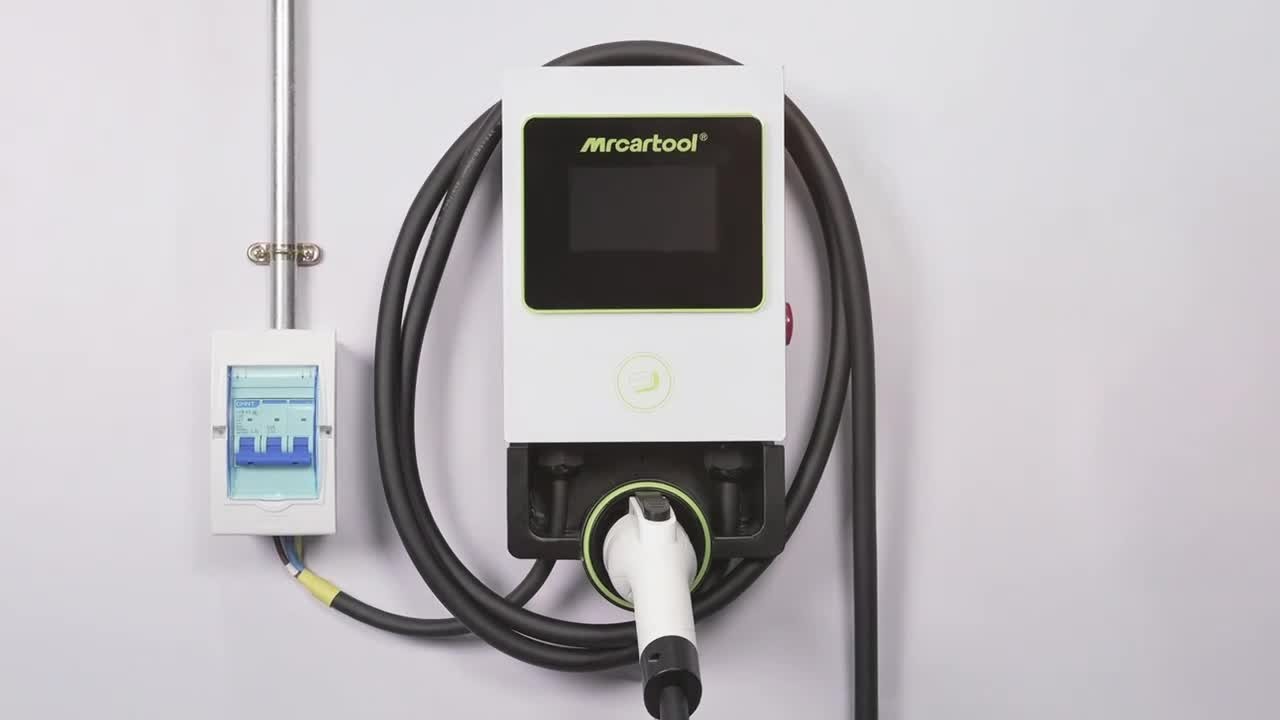

Product Introduction： MRCARTOOL S311 is primarily composed of a charging station main unit, charging gun, cables, and installation backplate. It is an electric vehicle charging device that charges electric vehicles by connecting to the grid power supply. Technical Specifications: Installation Method: Wall-mounted Wiring Method: Bottom entry/exit Cable Length: 8m Input Voltage: AC220V 20% Input Frequency:50HZ Rated Power:7KW Measurement Accuracy:Level 1 Output Current:32A Standby Power Consumption:Less than 2W Operating Temperature:-20℃~+80℃ Applicable Environment：Indoor/Outdoor Operating Humidity：5%~95% non-condensing Protection Level：IP65 (Control Box), IP55 (Gun Head - Coupling State) Operating Altitude：Less than 2000m User Interface：Display screen with LED indicator Protection Design：Overvoltage protection, Undervoltage protection, Short-circuit protection, Overload protection, Grounding protection, Leakage protection Function Description： Leakage Protection When leakage protection is triggered,it will automatically restore power after 3 minutes. Overcurrent Protection If the current exceeds the warning value of 35A, the charging station will cut off power output. It will automatically restore power after 1 minute. Overvoltage Protection When the voltage exceeds 275V, overvoltage protection is activated. It will automatically restore power once the voltage returns to a stable level. Undervoltage Protection If the voltage drops below 88V, undervoltage protection is initiated. It will automatically restore power once the voltage returns to a stable level. Temperature Protection Temperature protection activates when the temperature exceeds 83°C. It will automatically restore power once the temperature drops to 80°C. Grounding Protection The system default is that charging is not allowed without proper grounding. Emergency Stop Protection Pressing the emergency stop switch will cut off power output from the charging station. Normal operation can be resumed by restoring the emergency stop switch. Packing List:
