Erayco 43-Piece DIN Rail Terminal Blocks Kit – UK2.5B 12 AWG 20A 600V Screw Set
$ 16.25
Description

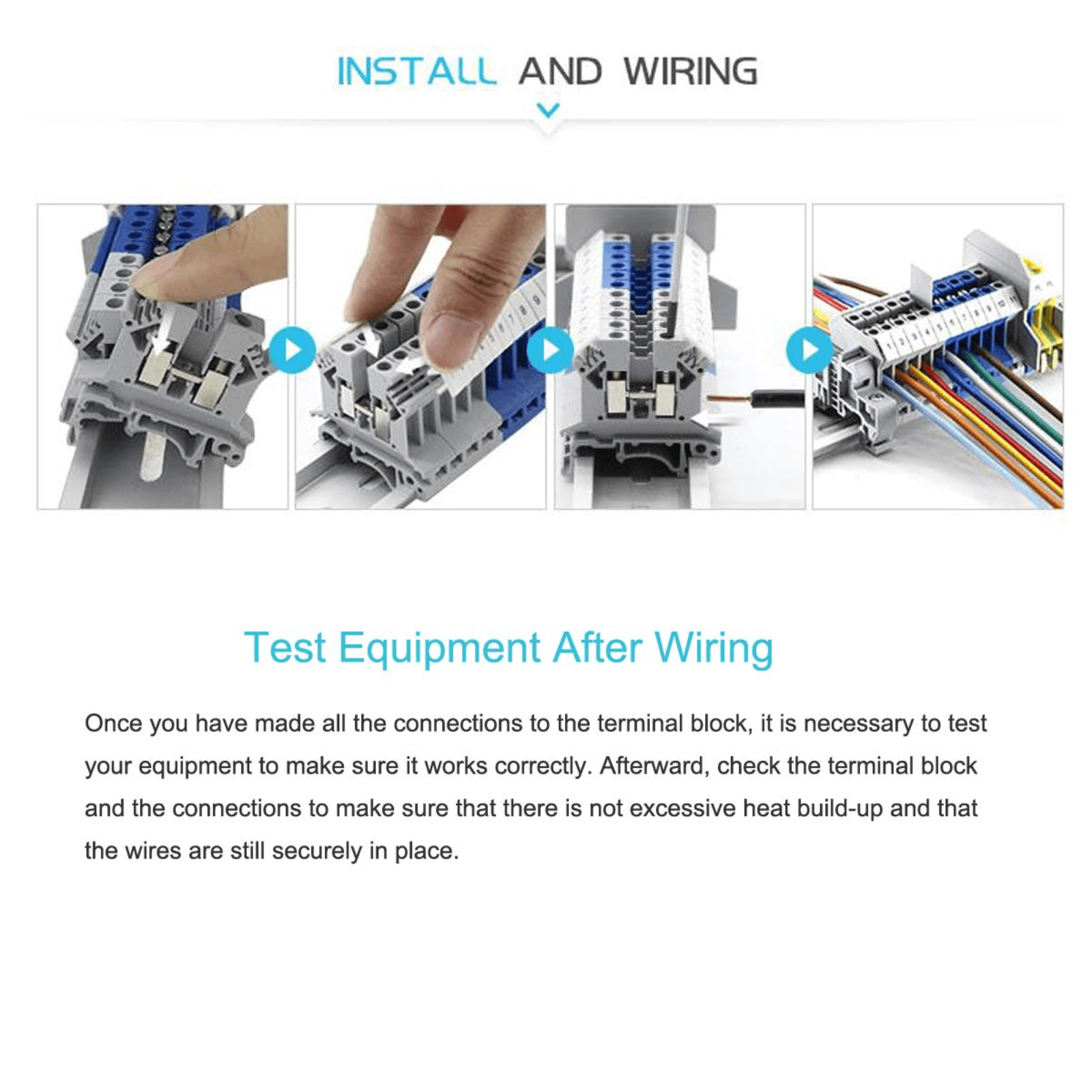

Erayco 43-Piece DIN Rail Terminal Blocks Kit – UK2.5B 12 AWG 20A 600V Screw Set. ER-049 · UK2.5N · Complete Kit. Model / Part Number UK2.5N / ER-049. Strip back your wire insulation exactly 8–10mm before inserting the bare copper strands into the UK2.5B clamp cage. Ensure no loose strands escape outside the housing wall to prevent localized short circuits. Professional Panel Building · Complete Wiring Hub Erayco 43-Piece DIN Rail Terminal Blocks Kit UK2.5B Screw Terminal Blocks · Ground Bus · Jumpers · 8" Aluminum Rail 20A / 600V · PA66 Flame-Retardant · Industrial Control Panel Solution ⚡ COMPLETE 43-PC KIT 🛡️ PA66 FLAME-RETARDANT 🔧 12 AWG · 20A / 600V ER-049 · UK2.5N · Complete Kit Streamline your industrial electrical panels, automation systems, and DIY control boxes with the Erayco 43-Piece DIN Rail Terminal Blocks Kit, the complete professional wiring distribution system. This high-conductivity component collection serves as a versatile powerhouse for electrical engineering, providing a highly organized, safe, and structured hub to bridge power circuits. For electricians, automation technicians, panel builders, and hobbyists looking to build a clean, code-compliant layout, this kit eliminates messy wire splices and chaotic junction points completely. Engineered with premium PA66 flame-retardant nylon housings and solid brass clamping blocks, this kit safely manages loads up to 20 Amps and 600 Volts. It accommodates wire sizes up to 12 AWG, making it effortless to link heavy-gauge supply lines. The complete assembly mounts perfectly to the included 8-inch RoHS-compliant aluminum standard 35mm DIN rail. Erayco delivers the entire structural package — complete with dedicated protective grounding blocks, distribution jumpers, end plates, locking brackets, and alphanumeric marker strips — ensuring your circuits remain safe, orderly, and professional. Key Features Complete Modular Control Kit Outfitted with 20 UK2.5B screw terminal blocks, 2 ground blocks, distribution jumpers, end anchors, and an 8" aluminum rail for an all-in-one panel solution. Flame-Retardant PA66 Nylon Housing Molded from premium engineering-grade nylon that resists structural heat distortion, aging, and electrical tracking to maximize cabinet safety. Solid Brass & Copper Internals Equipped with high-purity brass screw clamps and heavy copper current bars that ensure an airtight, low-resistance connection with minimal voltage drop. Heavy-Duty PE Grounding Bus Features specialized bright green-and-yellow grounding terminals with aggressive alloy steel rail clamps to establish an instant protective chassis ground. Quick Potential Distribution Jumpers Includes top-insertion bridge jumpers that drop directly into the center of adjacent terminals, allowing you to split or tie common power legs instantly. Specifications Specification Detail Brand Erayco Model / Part Number UK2.5N / ER-049 Wire Gauge Compatibility Up to 12.0 AWG Electrical Ratings 20 Amps Maximum Current / 600 Volts Maximum Insulation Total Component Count 43 Pieces (40 Active Contact Points) Mounting Base 35mm Standard Top-Hat Profile Rail Dimensions 8" Long RoHS Aluminum Rail Termination Style Threaded Screw Clamp (Zinc-Plated Steel Screws) Kit Colorway Classic Industrial Gray with Contrast Grounding Item Weight 200 Grams Wiring & Panel Building Tips 📏 The Strip Standard Strip back your wire insulation exactly 8–10mm before inserting the bare copper strands into the UK2.5B clamp cage. Ensure no loose strands escape outside the housing wall to prevent localized short circuits. 🔧 Torque Protocol Tighten the screw terminals firmly to ensure a gas-tight mechanical grip, but avoid over-torquing. A secure, firm hand-tightening ensures the brass teeth bite perfectly into your 12 AWG wire without shearing the copper core. 🛡️ End-Cap Shielding Always snap a UK-2.5BG grey end cover onto the final open-faced terminal block in your row before locking down the assembly with an E/UK end bracket. This fully isolates the live internal busbar, shielding maintenance teams from accidental touch hazards. Ideal For Industrial Control Panels PLC Automation Systems HVAC Control Cabinets Motor Control Centers Power Distribution Boxes Test Benches & Rigs Solar/Battery Junction Boxes DIY Electronics Enclosures Marine & RV Electrical Systems Shipping USA delivery. Excludes AK, HI, PR, Guam, USVI, APO/FPO & PO Box. Free standard shipping. Secure Checkout All major cards, PayPal, Google Pay & Apple Pay. Fully encrypted processing. Easy Returns 30-day satisfaction guarantee. Unused kits in original packaging for full refund. Support Questions about fitment or installation? Message us — reply within 24 hours.
