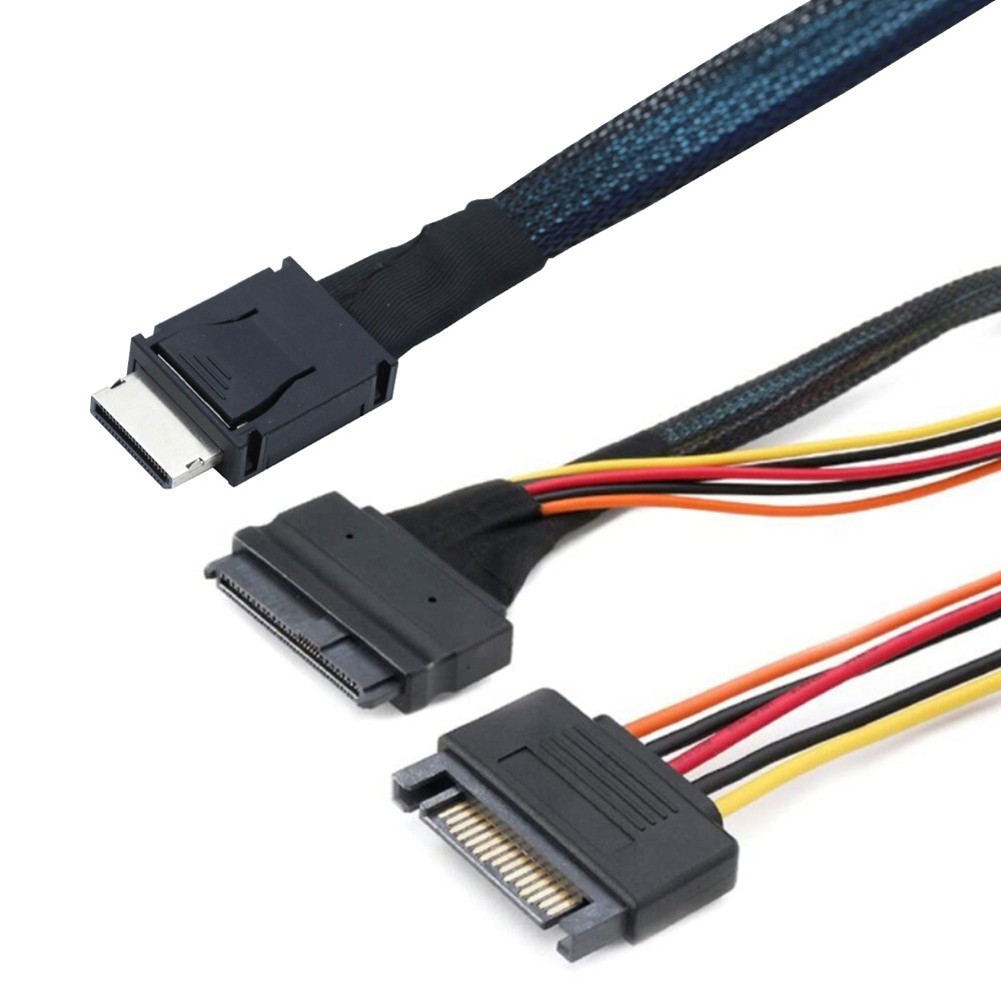

Gen 4 Oculink SFF-8611 4I to PCIe SFF-8639 U.2 NVMe with 15P Male Server8926

$ 10.56

California Prop 65 Warning: No Marke: SODIAL Country of Origin: China Custom Bundle: Regular Modified Item: NO Brand: Unbranded UPC: 4711244847721 Bundle Description: No Cable Length: Regular Modification Description: No Hersteller: SODIAL

Description

Gen 4 Oculink SFF-8611 4I to PCIe SFF-8639 U.2 NVMe with 15P Male Server8926. Wire Size:30AWG, Tinned Copper, OD:0.9x2.3 MM. initial, 15mohm maximum after stress test. Cable Pair Matching:±5 ohm. Lock to Mating Part:With. Common Mode Impedance:25 to 40 ohms. Insertion loss:-6dB maximum up to 4.5Ghz. Gen 4 Oculink SFF-8611 4I to PCIe SFF-8639 U.2 NVMe with 15P Male Server8926 1. Transmission rate 24Gbps.2. Meet SAS4.0 specification.3. Environmental Compliance:ROHS4. : Cable Horizontal flame, PCB 94V-0, PBT 94V-0Series:Mini SASWire Size:30AWG, Tinned Copper, OD:0.9x2.3 MMLock to Mating Part:With Plating:Au 30u' min over Ni 100u' minApplications:Data/Communications1. (Redundant Array of Disks)2. Workstations3. Rack-mount server4. Servers5. Storage rackMechanical Performance:Mating Force and Unmating ForceCondition:EIA 364-13. Insert and extract at a speed of 25mm/minuteMating Force: 55 N maximum for Mini SASUnmating Force: 49 N maximum for Mini SASMating Force: 45 N maximum for SATA connectorUnmating Force: 10 N maximum for SATA connectorElectrical Performance:1. Contact Current Rating - 0.5Amperes maximum per pin when mated2. Voltage Rating - 30VAC per contact when mated or unmated3. Contact Resistance - 30mohm max. initial, 15mohm maximum after stress test4. Dielectric Withstanding Voltage - 500 VAC for 1 minute no breakdown5. Insulation Resistance - 1000 Mohm minimumSignal Integrity:1. Mated Connector Impedance:85 ohm±15%2. Cable Absolute Impedance:85 ohm±10%3. Cable Pair Matching:±5 ohm4. Common Mode Impedance:25 to 40 ohms5. Insertion loss:-6dB maximum up to 4.5Ghz6. Crosstalk:-26 dB up to 24GhzColour:As ShownMaterial:plastic+MetalSize:Cable Length:About 0.5MPackage Contents:1 * server cable
