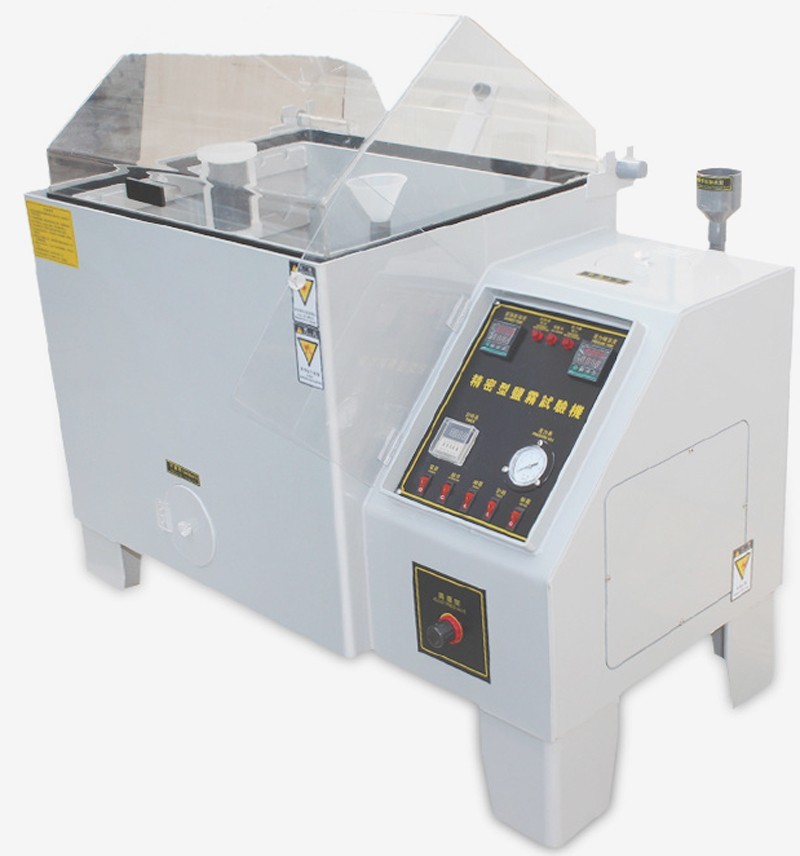

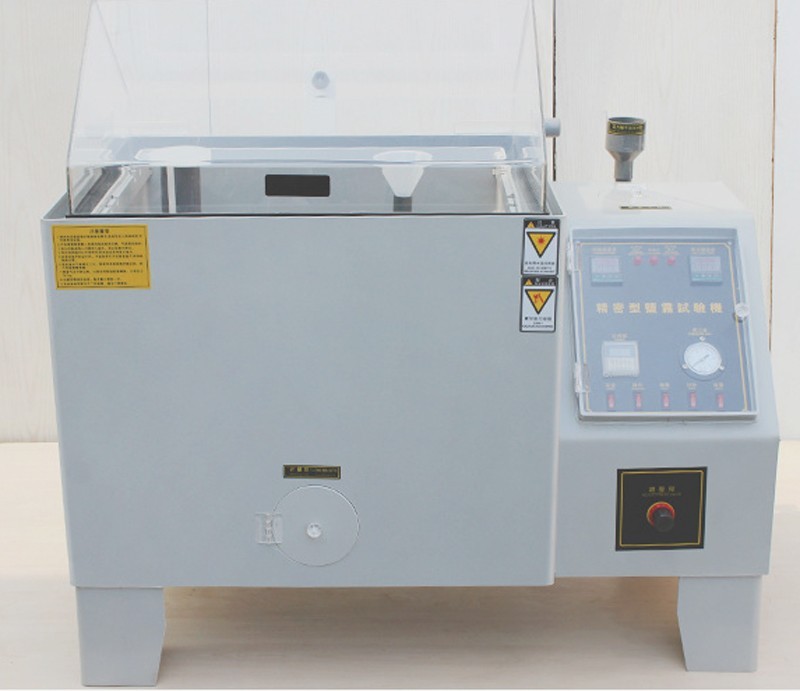

Precision Salt Spray Testing Chamber Lab Continuous Spray Measuring Test Tool

Description

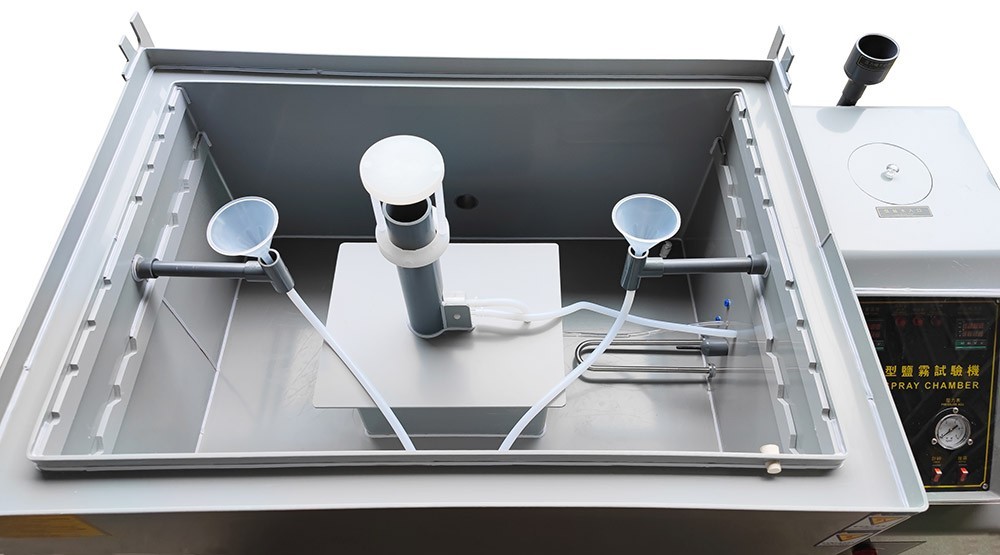

270L Precision Salt Spray Testing Chamber Lab Continuous Spray Measuring Test Tool Please note that control panels with different colors are shipped randomly. Product Parameter Voltage: 110V Power：2000W Laboratory volume: 270L Inner size: 900*600*400mm Outer size: 1390*830*1100mm Spray method: continuous Application It's used to test the corrosion resistance of the electrodeposited coating of many kinds of metallic materials.Use the salt spray test machine to spray the Sodium Chloride Solution to the surface of electric coating to achieve the purpose of detection.The material is stainless steel. Equipment: All equipment needed in the test: Spray nozzle, salt water barrel, test piece support, spray liquid collection container, test chamber, salt water, supply tank, pressure tank, supply equipment and exhaust equipment required for compressed air, the device is shown in the figure, and the test is conducted as follow. 1. Blunt material is required, it is required that the material itself cannot be corroded, and it can not affect the corrosion test. 2. The fog nozzle cannot spray the test liquid directly to the sample , the solution at the top of the spraying chamber cannot drop on the test piece. 3. The test liquid dropping from test piece cannot flow back to the salt bucket again for the test. 4. The solution should not contain grease and dust, so you have to prepare an air cleaner. 5. Spray liquid should be collected for at least 16 hours, and the average of the solution collected in one hour is 1-2ml. Use the final average to represent the amount of spray. 6. The concentration of the Sodium Chloride Solution should be maintained at 40~60g/L. 7. The temperature of the pressure barrel should be kept in 47+1 DEG C, temperature of the salt water barrel should be kept in 35+1 DEG C. Sample placement: If you need to test many pieces, make sure that all major surfaces can be detected by salt fog at the same time. Arrangement of samples, the spray should be free to drop on all the test pieces, preventing the situation of blocking the spray. Each sample cannot be in contact with each other. Salt spray can’t drop from one test piece to another one. Sample identification mark should be marked at the bottom of the test piece. Description Spray method: Adopting bernoute principle to absorb brine and then atomize brine , the degree of atomization is even, no blocking phenomenon of crystallization, can ensure the standard of continuous test. Nozzles: made of special glass nozzles, the size of the spray can be adjusted. Spray flow rate adjustment 1-2ml (ml/8ocm'/nh) (16-hour average) Spray mode: continuous type Adopt the direct heating method, the heating speed is fast to reduce the standby time, when the temperature reaches ON. OFF switching is conducted , accurate temperature, less power consumption.(heating tube is made of high corrosion resistance heating system: titanium tube). Item Number: Salt spray testing chamber 110V (239165) Shipping & Handling Details Default Shipping Cost or Free Shipping Information: ▲ Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us. ▲ Buyers from Guam, Puerto Rico, Virgin Islands, American Samoa, Alaska, Hawaii, PO Boxes, APO/FPO addresses or other countries/areas, there WILL be extra shipping costs, please contact us for more detailed information. ▲ Please make sure your address is valid for both UPS and USPS services. Any costs incurred because of incorrect or undeliverable address should be undertaken by buyer. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Sales tax / Customs duties: Any sales taxes or Customs duties are not included. If came out, they must be undertaken by the buyer. Damage In Shipping: Email or call us First! We will work with you to get the case resolved in the fastest method. Return / Refund If you are not 100% happy with your purchase, please contact Us. Please don't directly opened a request or case without informing us, or else, we will do some discounts on the warranty and other sales-services later on. Hope for your understanding. Returns & Exchanges ▲ All returns must be made within 30 days of delivery date. Items must be in new, unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition. ▲ Items returned under the buyer’s remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15% restocking fee of the items purchase price will be charged. ▲ Returns that are the result of our seller's error: Buyer will receive a full refund of the item as well as shipping charges ▲ All returns require a RA (Return Authorization) number that will be given by our seller. Please contact with us at first for more details. Defective & Damaged Products ▲ If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding. ▲ Replacement or refund of defective or damaged products can only be returned in exchange for the exact same product, or else, the purchase price will be refunded back to your original payment method. ▲ If an item is received damaged, customer service must be contacted within 7 days of receiving your item. All returns require a RA (Return Authorization) number as above. Warranty & Feedback ▲ 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. ▲ Any warranty shipping cost to us is responsible by buyer. ▲ Any shipping cost to buyer is responsible by the seller. ▲ We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much. On Jan 21, 2026 at 17:38:09 PST, seller added the following information:
