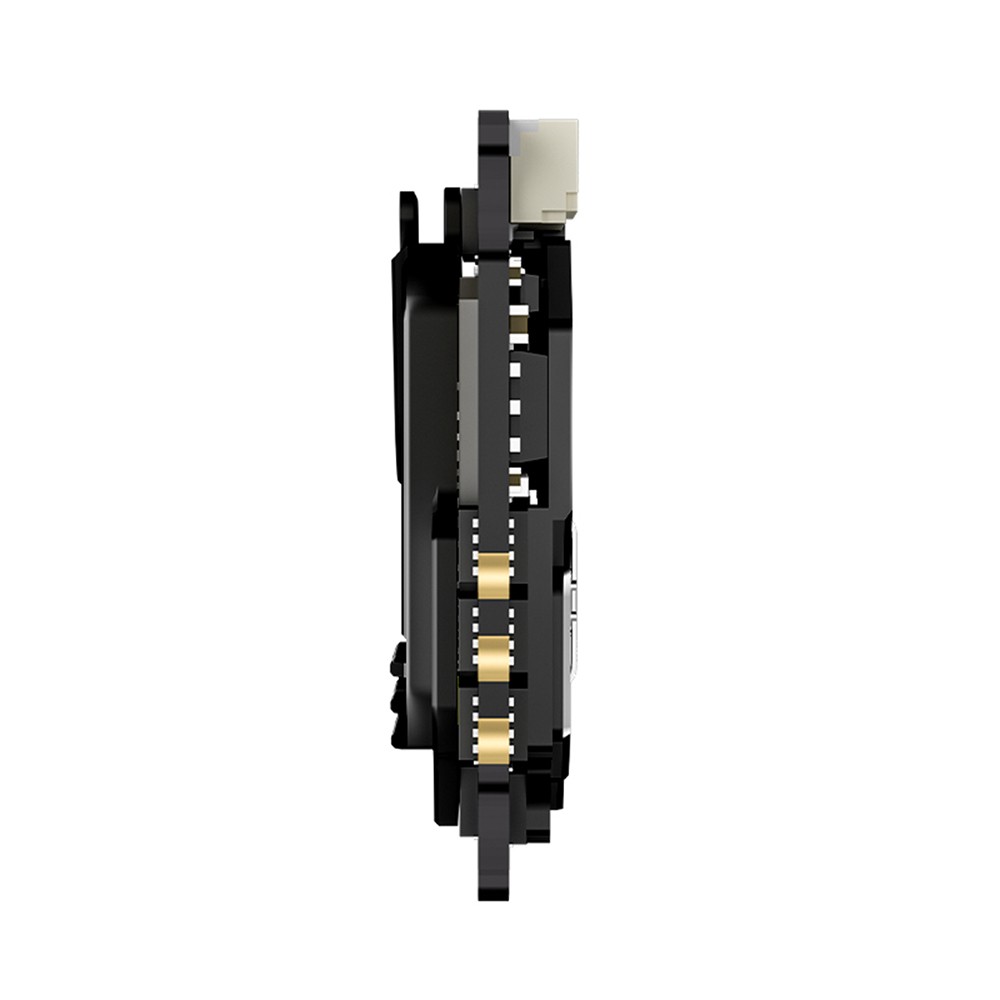

SpeedyBee F405 AIO V2 Flight Controller 35A 40A ESC 2IN1 ICM-42688 Gyro Dual BEC
$ 32.93
Description
Features: 1. Integrated Flight Control and Electronic Speed Controller for Model Aircraft 2. Onboard ICM-42688 gyroscope, no CNC version reduced to 8.9g,Small sized racks can also be easily assembled 3. 4 sets of UART serial ports+SBUS+12C+TYPE-C expansion+buzzer+BOOT, GPS,magnetometer, LED can all be easily connected 4. No need to connect to a computer or data cable, supports one click wireless same device upgrade, the system automatically enters DFU mode without manual operation 5. Multiple optimized designs, O4 image transmission can be directly installed 6. Dual BEC Design: optimized pad layout,Both 9V BEC and 5V BEC exhibit excellent performance 7. Built-in physical buttons and virtual DFU buttons, and firmware upgrades do not require disassembly, APP One click access to DFU, firmware upgrade more portable 8. Only supports DSHOT600/300, other protocols may cause serious errors 9. Support meteor light strip function,Easily create cool lighting effects, personalize your flying experience(it can also automatically enter DFU when the flight control firmware is abnormal) 10. Support remote control mapping for power control,Can be freely enable /close, effectively avoid damage to image transmission due to overheating during no-load operation Description: The F405 AIO V2 all functional solder pads are concentrated on the same side,the solder pad area has increased by 30% compared to F745 A1O, making soldering easier andthe operation more convenient,has launched a CNC free version to further optimize its volume and weight, meeting more requirements for small rack adaptation. F405 AIO V2 Specifications: Product Name: SpeedyBee F405 A1O V2 Main control chip: STM32F405 Gyroscope: ICM-42688P USB interface type: Type-C Barometer: SPA06-003 OSD: Support Bluetooth BLE: Supports Wireless Flight Control Firmware Update: Supports DJlAir Unit connection methods: 6PIN socket direct insertion and soldering Black box storage: 8MB Betaflight CC solder pads: support Input voltage: 3S-6S lipo battery 4V5 output: 1A 5V BEC output: 1.5A 9V BEC output: 1.5A MOTOR: M1-M4 UART serial port: Four sets of fully functional serial ports (UART3, UART4, UART5, UART6+SBUS [R2]) Electric tuning test input: none I2C: Support LED pads: support Beehive pad: Support BOOT key: Support RSSI pad: None SmartPort: not supported Supported flight control firmware types: betaflgiht Firmware Target Name: SPEEDYBEEF405AIOV2 Installation hole position: 25.5mm x 25.5mm, 2mm aperture Size: Standard version: 33x33x7mm; CNC version: 33x33x8mm Weight: Standard version: 8.99; CNC version: 12.8g ESC Specifications: Product Name: SpeedyBee F405 AIO V2 Input voltage: 3-6S Nominal current: Standard version: 35A single channel, 140A four channel; CNC version: 40A single channel, 160A four channel Peak current: Standard version: 40A V, 160A quad; CNC version: 45A single channel, 180A four channel ESC protocol: only supports DSHOT600/300, other protocols may cause serious errors. Output voltage: VBAT battery voltage (used to power the flight control) Ammeter: Supports (Scale=88, Offset=0) ESC firmware: Factory firmware Bluejay JH-40 48Khz Package contents: 1 * F405 AIO V2 1 * Welding practice board 4 * M2 7.7mm shock-absorbing silicone sleeve 4 * M2 8.4mm shock-absorbing silicone sleeve 1 * DJI Sky End Connection Cable [SH1.0 6pin * 80mm] 1* BEC 1 * Type-C extension module 1* Type-C extension module 4-pin * 80mm ribbon cable 1 * User Guide 2 * Transparent heat shrink tubing 1 * Meteor light strip BEC connection cable view 80MM 1 * Power Expansion Board 4 * fixing screw M2 * 20mm 4 * fixing screw M2 * 12 mm 1 * 35V 470UF electrolytic capacitor 1 * Electric customer heat shrink tubing Note: Only the above package content, other products are not included. 1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks! Before purchase: 1.All the goods are ready stock, we will arrange the shipment at once if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. 3.No warranty,if you receive a defect item,please contact us at once with item picture. 4.Use the vouchers for more saving. After purchase: 1.If you are satisfied,please express your use feeling. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item picture or video.
I mean the Costumer service was on point , and also the product was brand new so 0 complains on those regards , just minor inconvenient but were resolved as soon as i contacted the seller , so if you got any issues just contact them they are quick to answer and also very nice and helpful. So overall all good with the seller. Be aware the seller is sending the product on time but some times is not their fault that some transpiration companies may delay some stages of the process.
Wrong item shipped originally. Contacted seller and he asked for photos of items received and the envelope they were sent in. Shortly after seller offered a refund or the correct items. I asked for the items and they were expedited. Conscientious seller. Great prices. If you are patient waiting for things from China, order away!
Product wasn’t quite what I was after but the seller was great and helped me out with sourcing a better solution, the product may not be perfect for me but the seller is 10/10 for service and communication as well as fair pricing
